| Product Name：Overhead / Stage Condenser Microphones: CTM-1500VP |
Description：

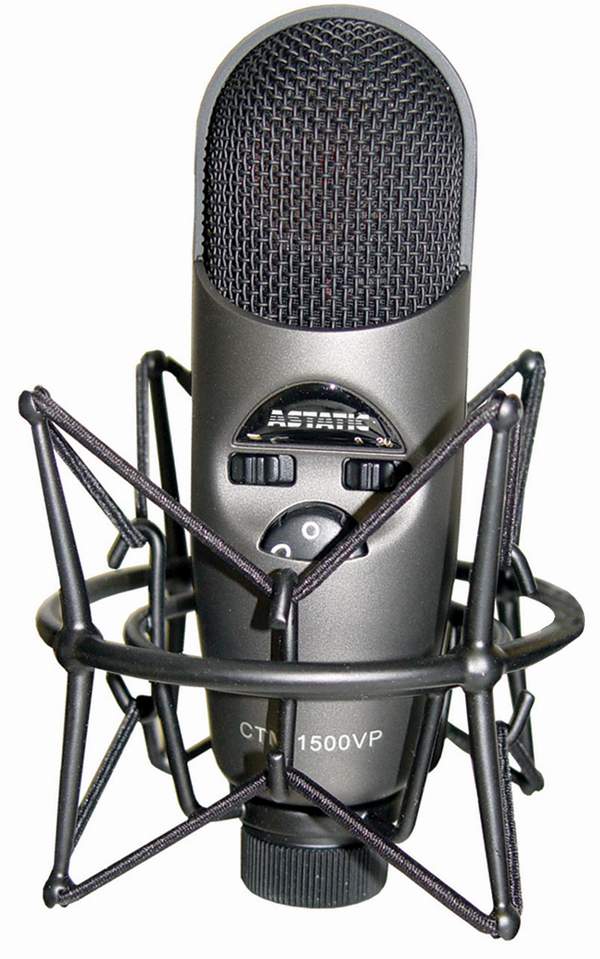

The Astatic CTM-1500VP is a continuously variable pattern side address large diaphragm
condenser microphone designed for professional sound reinforcement, recording and
broadcast applications. The CTM-1500VP combines a vintage 1.1", gold sputtered, externally
biased capsule design with advanced electronics. Continuously variable pattern control
allows the operator to “dial in” precise coverage according to desired miking techniques as
well “dial down” feedback potential according to mic placement and reflected sound waves.
Vintage capsule voicing features a slight rising audio response at 6kHz and 12kHz (cardioid)
making the CTM-1500VP the choice for vocal, choral and acoustic instruments in fidelity
sound reinforcement as well as recording and broadcast applications.
Features：
• Continuously variable pattern selector
• Hi pass filter (6dB/oct @ 100Hz)
• 20dB pad
• Premium 1.1" diaphragm
• Transformerless output for High SPL and extended low frequencies
• Use of Op Amps instead of FETs assure optimum performance and very high gain
• Includes stand adapter, shockmount and zipper pouch
Specification：
OPERATING PRINCIPLE: Ext. Biased Condenser
POLAR PATTERN: Continuously Variable
FREQUENCY RESPONSE: 20Hz - 20kHz
SENSITIVITY: -36dBV (16mV) @ 1Pa
IMPEDANCE: 200 ohms
SELF NOISE: 11dBA
MAX SPL: 143dB (20dB pad engaged)
POWER REQUIREMENTS: P48, 8mA
|
