Description：

 Besides loudspeaker, amplifier and mixer, peripheral equipments also play an important role in professional audio system. The aim of professional signal processing is to optimize the sound effect and protect the sub-equipments, with all kinds of modification and polishing to the audio signals. Typical equipments used for professional signal processing include: Equalizer, Compressor, Effecter, Exciter, Frequency shifting processor, etc.

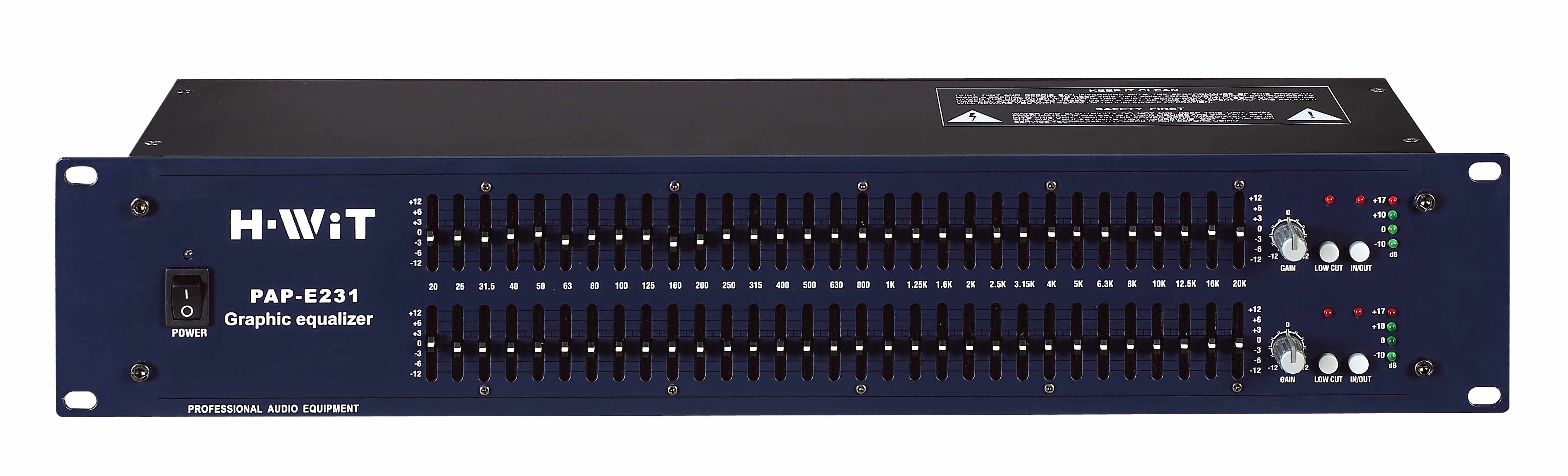

　　Equalizer is a kind of audio equipment which can be used to adjust the frequency response curve. It can compensate the frequency deficiency in signals caused by various reasons, meanwhile avoid excess frequency in the signal. For example, equalizers can restrict the low frequency voice ranged 60~250Hz as well as high frequency noise ranged 6~12kHz. Equalizers can also be used for volume adjusting and timbre glorification. The original meaning of equalizer is to equalize the unbalanced frequency characteristics with the opposite frequency characteristics.

Features：

Automatic feedback dot checking instruct function
Unique noise-reducing circuit, apply to complicated environment
Professional balance IN/OUT connector

Specification：

Frequency response　 20-20KHz? 0.5/-1dB
Harmonec distortion 　< 0.02%
S/N　　 　　 　　　 >90dB
Channel cross talk　　 <-110 dB
Dynamic range　　　 >116dB
Input impedance　　 40KΩ balance ,20KΩ unbalance
Output impedance　　 120Ω balance,60Ω unbalance
temperature　　　　 08 ~ 408C
size　　　　　　　 482×88×175mm
weight　　　　　　 2.8kgs
