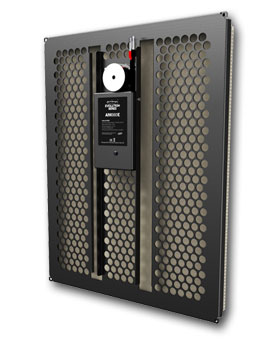

| Product Name：AIW350E |
Product Description：
The all new AIW350E Evolution Series loudspeaker takes Invisible loudspeakers into new territory with respect to sound
quality. An evolution of the highly successful AIW3X loudspeaker, the AIW350E retains the same familiar installation
technique and is compatible with all previous mounting accessories.
Features：
• Suitable for low/medium powered audio
systems including living and dining rooms
• 30W continuous / 60W peak power handling
• Nominal impedance – 8 Ohms
• Sensitivity – 84dB 1m/ 2.83Vrms
• Dimensions – 450mm x 345mm x 40mm
• Weight – 1.2kg
Specification：
| Specifications |
|
AIW350E |
| Nominal impedance |
|
8 Ohms (APU connected) |
| Power handling (continuous / peak) |
|
30W / 60W |
| Sensitivity (2mm plaster/mud skim) |
|
84dB 1m/ 2.83Vrms (APU connected) |
| Frequency response |
|
105Hz - 20kHz (-6dB) mounted in BackboxFS (APU connected) |
| Electrical connection |
|
Blue butt splice crimp terminals (14-16 AWG) |
| Dimensions |
|
173/4” x 135/8” x 15/8” (450mm x 345mm x 40mm) |
| Product weight |
|
2.6lbs (1.2kg) |
| Fixing requirement |
|
Amina BackboxFS / BackboxSW (wood adhesive and fixing blocks |
|
|
available on request) |
| In-line protection unit |
|
APU2 or APU350 |
| Manufacturer limited warranty for residential applications |
|
10 years |
|
