| Specifications |
|

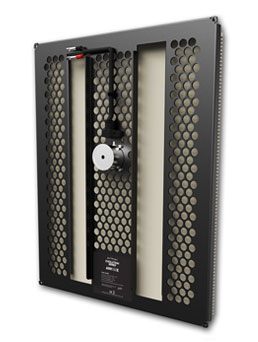

AIW150E |
| Nominal impedance |
|
8 Ohms (APU150 / APU2 connected) |
Power handling
(continuous / peak) |
|
15W / 30W |
Sensitivity
(2mm plaster/mud skim) |
|
83dB 1m/ 2.83Vrms (APU150 / APU2 connected) |
| Frequency response |
|
105Hz - 20kHz (-6dB) mounted in BackboxFS (APU150 / APU2 |
|
|
connected) |
| Electrical connection |
|
Blue butt splice crimp terminals (14-16 AWG) |
| Dimensions |
|
173/4” x 135/8” x 15/8” (450mm x 345mm x 40mm) |
| Product weight |
|
2.4lbs (1.1kg) |
| Fixing requirement |
|
Amina BackboxFS / BackboxSW (wood adhesive and fixing blocks |
|
|
available on request) |
| In-line protection unit |
|
APU150 or APU2 |
| Manufacturer limited warranty for residential applications |
|
10 years |
