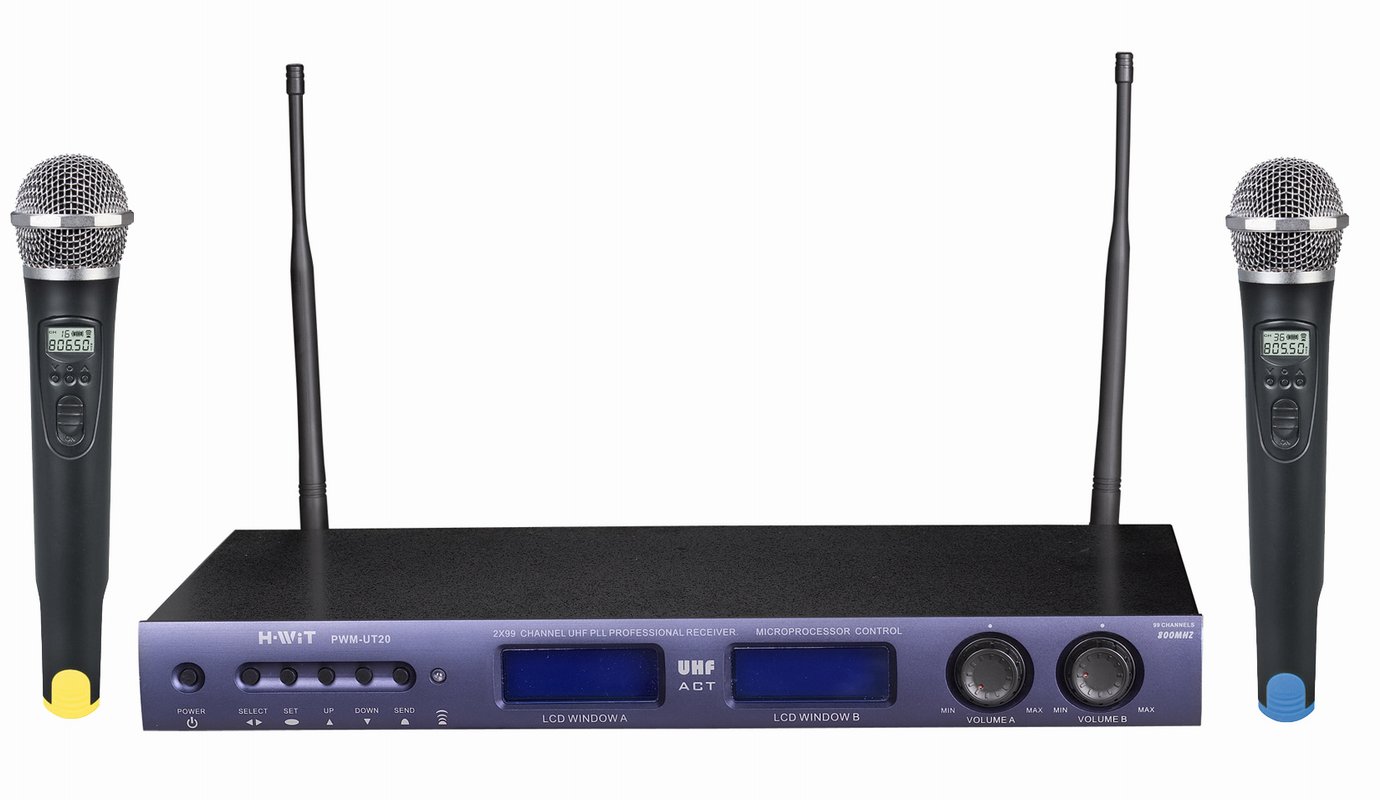

| Product Name：PWM-UT-22 UHF Wireless Microphone |
Product Description：
1. Using UHF 700-870 MHz band to avert interferencing frequency.
2. Dual channel designed,two microphones can use at the same time to sing without any disturbing caused by.
3. Microprocessor control, that's easy to operation.
4. Using digital LED display channel
5. PLL system. preset 16 non-interfered channels
6. Using the latest SAW filter of the RF,to avoid those interferencing signal from band outside
7. Using twice mixer high-frequency circuit design,it has very high sensitivity. about 3 uV
8. Multilevel quiet control circuit,to avoid interference signal from outside open the mute system
9. Special design companding circuit,strongly improve s\n ratio
10. Special voice compress-limiter design,it will not crack though the singer sang very loudly.
11. Using excellent dynamic cardioid direct cartridge,the timbre bright and clear.
12. Choose high quality component,accurate rational circuit design,reliability is enhance
13. high efficiency batteries consumption design, so the handheld could be in using for 20 hours continuously.(AAAbatteries)
14. Using high gain antenna,the space availability is more than 100 meters at the clearing
15. Exquisite streamline aspect,make holding more comfortable.
16. All ready output and input socket,it will be more convenience to connect every equipment.
17. It is suitable for small and large
18. stages,ballrooms,auditoria ,classrooms and families.
Specification：
Receiver:
• power supply: DC 17V
• consumer power: 4 WATER
• S/N ratio: more than 90DB
• image & spurious rejection: more than 80db
• boarder upon channel rejection: more than 80db
• receiving sensitivity: 10dBuV(SINAD=30dB)
• De- emphasis: 50us
Handheld microphone:
• transmitter power: 8.5mW
• modulation type : FM,F3F
• max deviation: ±25Khz
• spurious emission: more than 40dB(with carrier)
• battery voltage: 1.5Vx2
• continous using: 6 hours
Comprehensive performance:
• carrier frequency: UHF800MHz
• frequency stabilization less than ±30ppm
• dynamic range: more than 90dB
• total harmonic distortion: less than 0.5%
• frequency responce: 40HZ-15KHZ±3dB
• audio output level: separate type::0--±400mV
mix type: 0--±200mV
|
