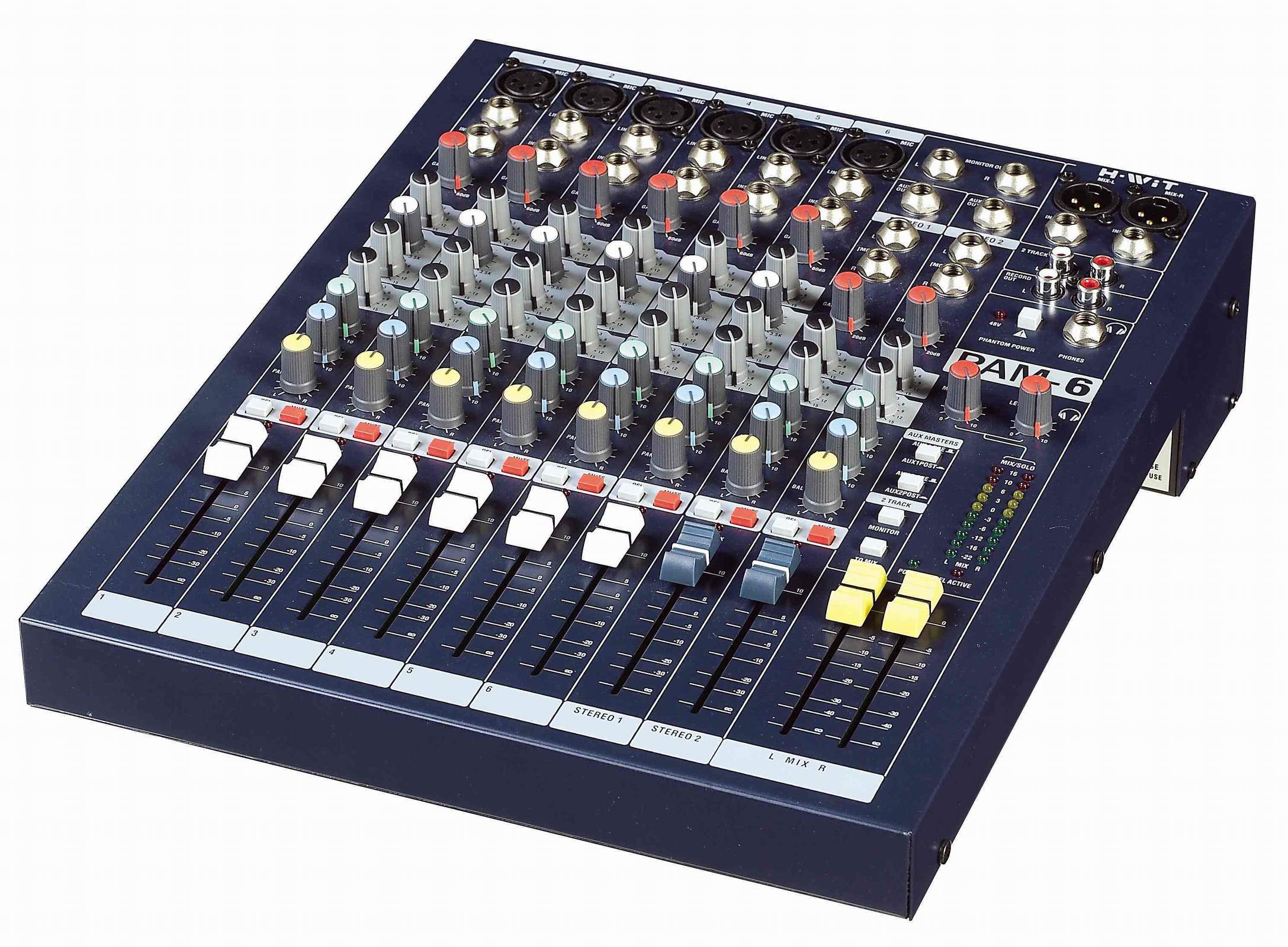

| Product Name：4.1 PAM-6 Professional Mixing Consloe |
Features：
1. 6,8 and 12 mono channel and 2 groups of stereo input
2. High quality, low noise balanced mic input
3. Insert jack equipped for mono channel and master output, so to connect external signal processor more easily
4. Provide high quality +48V phantom power for each channel's mic
5. 3 bands EQ, HM and LM swept, with England style
6. 2 AUX outputs, can connect external processor
7. High accurate three color level column, to display output level exactly
8. 60mm high precision handspike POT attenuator
9. Built-in squelch switch power source supply, more flexible and convenience
Specification：
•Frequency Response:Mic/Line input to any output, 20Hz－20KHz ；±0.5dB
•Total Harmonic distortion+noise:input to mix, mic gain, 30dB，<0.007%
•Mic Equivalent input noise:MIC EIN@Max gain, 150 ohms source impedance -128dBu
•Bus noise:Noise(20Hz－20KHz bandwidth) terninal load is 150Ω RNS
•Tone:Mix level@max ,faders down<－85dBu
•Channel crosstalk
•Mute:>96dB
•Fader cut off(mark +10):>96dB
•AUX send port:>86dB
•Input & Output Impedance:
•Mic input:2.4KΩ
•Line input:11KΩ
•Stereo input:100KΩ
•output:75KΩ
•Input & Output Ievel
•input&output levels
•Mic input max level:+17dBu
•Line input max level:+30dBu
•Stereo input max level:+30dBu
•Mix output max level: +20dBu
•Headphone output max level:300mw/200Ω
•EQ Mono channel input
•HF:12KHz±15dB
•MF:140Hz－3KHz，±15dB
•LF:80Hz，±15dB
•Output level:L & R mix output level is 12 segment of LED indicator
•Working condition
•Temperature:－10℃～+30℃
•Humidity: 0%～80%。
•Power supply: AC input:85v～270v ; 50/60Hz
|
