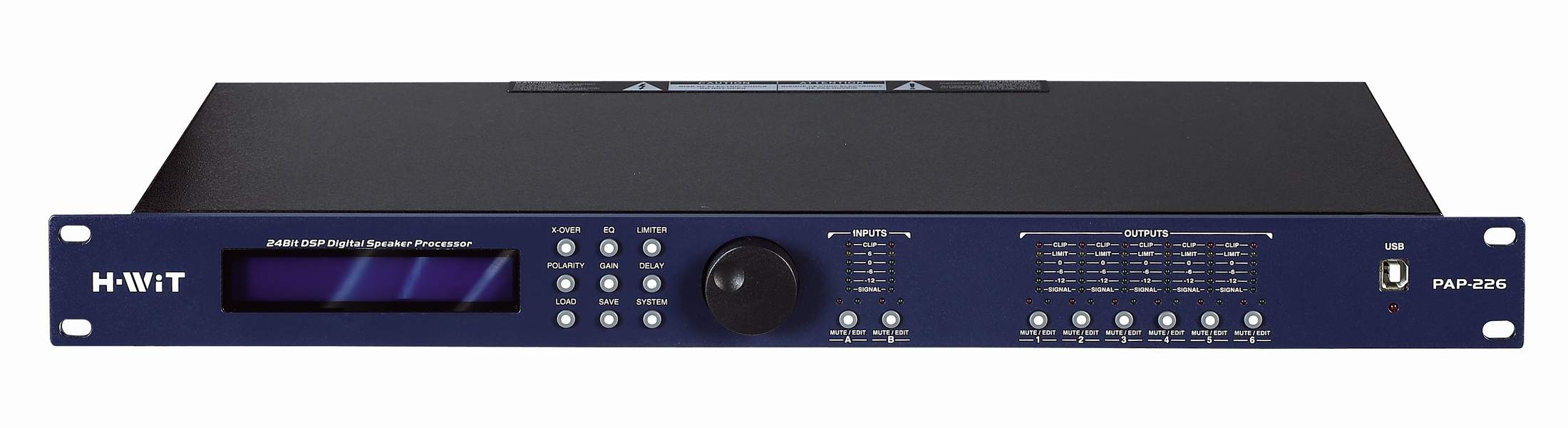

| Product Name：PAP-226 Digital Speakers Processor |
Product Description：
〖1〗System Setup
1/ device id set
2/ Password Setup
3/ power on set（All Mute / Keep in last state）
4/ backlight set（Keep On / 10s ）
5/ System information
〖2〗Input channel option：
1 / Mute：every channel have input mute（ON/OFF）
2 / Delay：longest delay 1000 ms
3 / Polarity： Pol (+) or Pol (-)
4 / Parameter Equalizer：every channel can set 6 parameter EQ（EQ—EQ6）
In Parameter
Frequency point：20Hz-20HHz
Bandwidth：0.05 ~ 3 Oct/w
Gain：-20dB ~ +20dB
〖3〗Output channel function option：
1/ Input choice：Each output can choose difference input channel（A , B, C, D channel or non channel），Each output can also choose difference channel assemble.
2/ Mute：each channel have output mute function，MUTE（ON/OFF）
3/ Output Gain：-12dB ~ +12dB Step distance 0.1dB
4/ Output delay：longest delay 1000 ms, can display in the computer by M or Ft.
5/ Polarity： Pol (+) or Pol (-)
6/ Crossover filter type：Link-Ril / Buttworth / Bessec
Frequency point：20Hz ~ 20KHz
Slope：12dB、18dB、24dB、48dB
7/ Limiter：
Threshold：-20dBu ~ 20dBu
Attack：0.3ms-100ms
Release : can be set to start time’s 2, 4 , 6, 8 , 16 or 32 times
8/ Parameter Equalizer：in Paramerer
Frequency point: 20Hz ~ 20KHz
Bandwidth：0.05 ~ 3 Oct/w
Gain：-20dB~+20dB
In Lo-Shelf and Hi-Shelf
Frequency point：20Hz ~ 20KHz
Gain: -20dB~+20dB
Slope：6dB、12dB
〖4〗Key-Press function
1/ X-Over: Enter high-pass low-pass adjust(useful when adjust output channel, inefficacy when adjust input channel)
2/ Eq: Enter equalizer adjust.
3/ Dynamics: Enter limiter adjust(useful when adjust output channel, inefficacy when adjust input channel)
4/ Polarity: Phase position choosen
5/ Gain: gain and input channel choose key (useful when adjust output channel, inefficacy when adjust input channel)
6/ Delay: Enter delay function
7/ Load: Transfer saved program.
8/ Save: Save revision program
9/ System: System setup
10/ MUTE/EDIT:Mute or Edit（press shortly enter mute function, red light display.press longest enter edit function, green light display.）
11/ Enter/Setup
|
