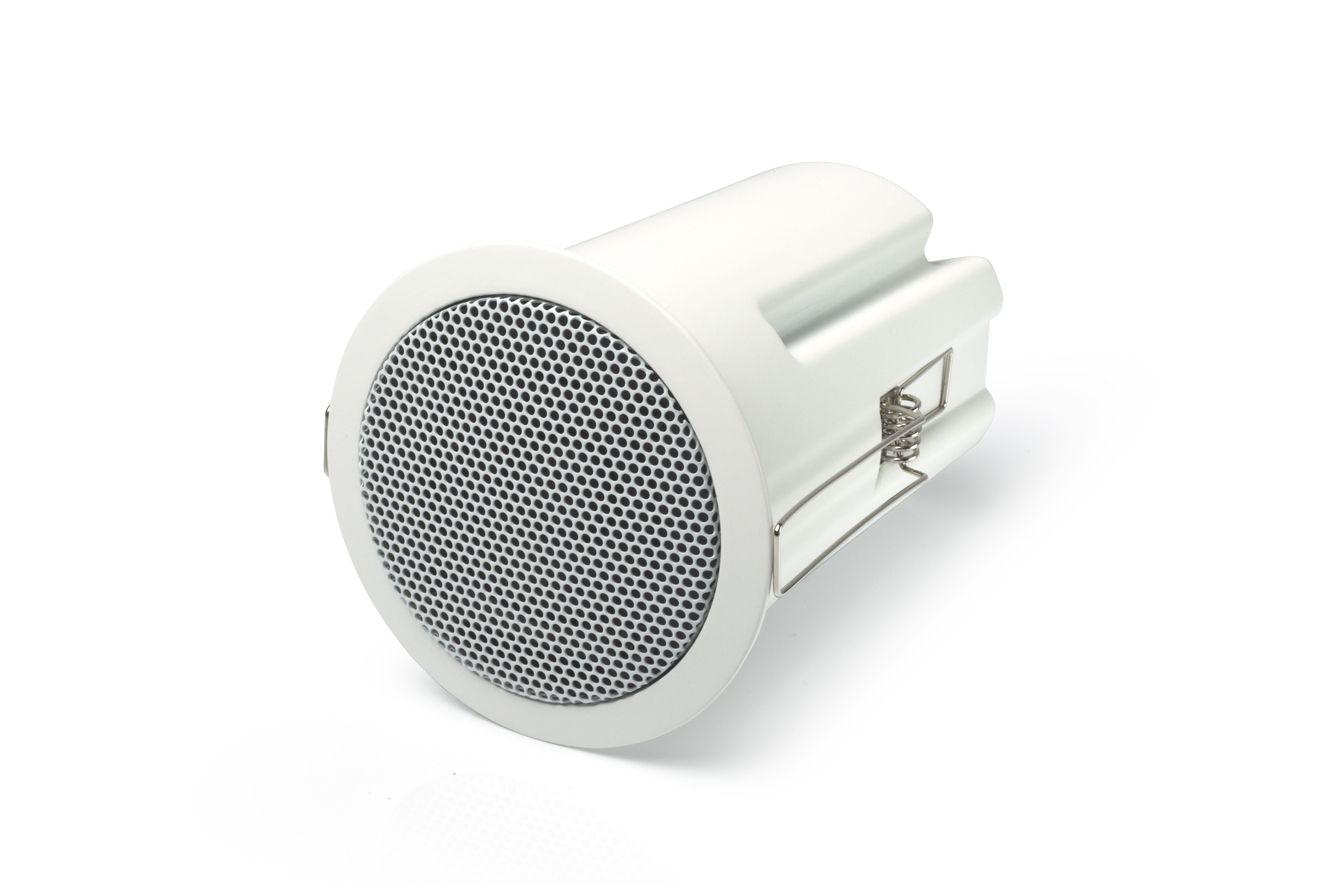

| Product Name：MICROdot Ceiling Speaker |
Product Description：
Traditional design of loudspeakers for these applications has either been large boxes that give full-range audio, but which are inherently less attractive or
more visible, or sub-sat systems that use tiny satellite loudspeakers for mid/high frequencies and a subwoofer for mid/bass.The main problem
with sub-sat systems in public spaces is that people are often listening close to thin sounding satellites with the mid/bass rumbling away in
the distance,disconnected in bringing the critical mid-band together for audio quality.
With MICROseries we've designed the smallest possible loudspeakers to give high quality over a wide audio band so
that, no matter where you are in the room, the sound from the main loudspeakers remains coherent and pleasing.
For most applications no additional bass loudspeakers are required, whether you choose the MICROdot flushmount
or the MICROpoint and MICROline surface-mount models.
For applications requiring extended, higher level bass performance, such as an Audio-Visual system
playing back film material, the MICROsub can be added and carefully tuned just to add extended bass
and not confuse the mid-band.
With all of the MICROseries loudspeakers, aesthetics have been a prime consideration.This
starts with the family look, which is softly shaped to merge into the environment. Secondly
with the selection of materials, which have to be acoustically excellent but also provide for
flexibility of design and quality of appearance.The MICROdot is a single-piece aluminium
casting whilst the MICROpoint and MICROline use aluminium extrusions with moulded
aluminium end-caps. Grilles are micro-perf steel for acoustic transparency with
durability.The MICROsub is a more traditional construction but adds a full amp-panel
cover to ensure it looks good from all angles and prevent access to controls and
electrical connections.It also has a steel mesh grille under the aesthetic cloth cover.
Equally important for aesthetics,and speed and quality of installation, are the fixings
and brackets.The MICROdot fits a standard 85mm diameter ceiling spotlight cutout
and is fitted with integral spring-clips.The MICROpoint and MICROline have a
unique and secure integral bracket, merging the design of loudspeaker and
bracket. Only the bracket needs to be fixed and connected during first-fix. Fitting
the loudspeaker, with pre-wired cable management through the bracket, is then
done as required and the position locking screw is hidden behind the loudspeaker
grille. A high degree of tilt and pan are catered for, allowing for wall or ceiling
mounting with the required angle of coverage.The MICROsub is also supplied
with its own mounting bracket which allows flush mounting to walls or ceilings.
Specification：
Drive units - 1 x 50mm full range drive unit
Frequency - 70Hz to 20kHz
Power Handling - 25W
Impedance - 8 Ohm
Fixing - Integral spring clips, standard 85mm mini spotlight cut-out
Dimensions (mm) - H 130 x W 100 x D 100 (85mm cut-out)
Weight - 0.5kg
|
