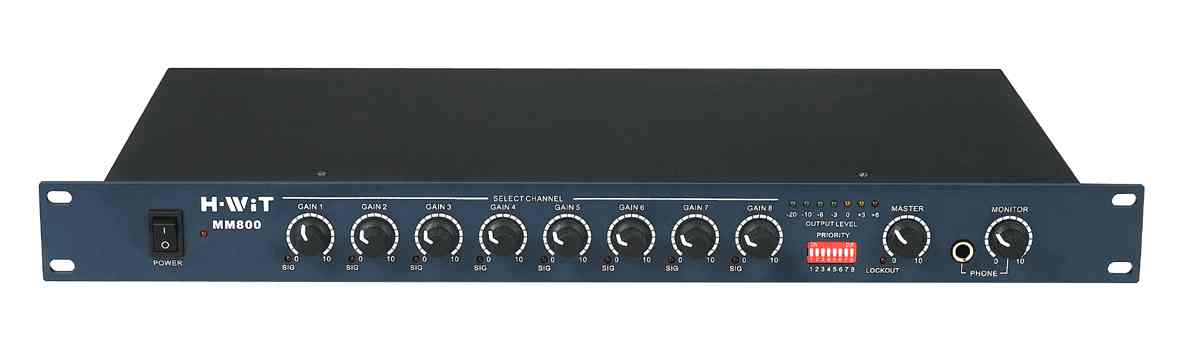

Product Name:Automatic Mixer

Product Description:


   Multi-channel automatic mixer is ideal selection for conference room system.
All switches under micro-processor control. Automatically gain adjustment by NOMA circuit. Corresponding various kinds of application in conference room due to priority-select function
and gate-hold time setting. Automatically adjust the output level by the quantity of channels. Control the gate by automatically checking the environment noise level and the activeness of
the microphone.
        With the gate-hold setting, it can control the number of linked active microphone and keep it to the least.Thus reducing the background noise and improving the sound quality. Even if the conference environment is quite complicated, meetings can work on very well. 4/6/8 channels for the main unit are available for the system.
Switch freely between various applications.
 1,  Pri-right system
   The pri-select unit has the priority. When it is working, other channels will automatically
   be attenuated( to a utmost of -40dB); the pri-unit can interrupt the other active switches.
   At most 3 pri-unit can be settled.
 2,  Pre-order system
   Individual priority pre-select switch for each MIC/LINE channel allows choice of one-
   channel-at-a-time operation, all active, or any mix of moderator override. The last
   microphone on stays on so that ambient sound is never muted.
 3,  Discussion system
   All linked switches can be active on the same time. Gate-hold function shut-up
   automatically, all units on working state.




Features:


      The system offers 16-unit daisy chain by accessory link cable. Maximum to 128 channels operation.
Construct the best system according to the application settings. Corresponding various
kind of application in conference room due to Priority-select function and gate-hold time setting.
Manual threshold level setting. Plus phantom power function. 8 channels or line input and one assist setting.
 Adaptable to AMX CRESTORN through RS232C connector. Basic setting on mail unit, detailed setting through the accessory software Memories. All setting programs fitted into the main unit, no need for PC after the setting finished.



Specification:



MIC

LINE

LINK

UNBALANCED

Input inpedance

5Kohm



20K ohm



Output inpedance

balanced

100ohm

400ohm

300ohm

200ohm

Maximum in

-24 dBV







Maximum gain

>70 dB

Frequence response

80Hz~20KHz-3d B



Equivalent input noise

<-120dBV

Mic input attenuate

50dB



Phantom power

+48V DC

Power supply

12AC



Control voltage

+4VDC

accessories

Link cable, pc cable
