| Product Name：PWM-U20 Series Wireless Microphone |
Product Description：
The technical investigation and innovative design of H-WIT makes it possible to have the best wireless microphone system which brings us perfect sound performance with high quality and hyper-stability.
Special impulse suppression circuit totally removes the noise when you switch on/off the microphone.
Wide range of dynamic, sound naturally reproduction, makes the speech easier and smoother.
Good sound code locking capacity, stable receiving and long distance pick-up.
The receiving circuit chooses stable double-tuning diversity design to avoid staccato phenomenon. Gain aerial greatly improves the receiving result.Excellent S/N( above 80dB) gives you fresh, pure sounds. The bottom ON/OFF design can avoid unexpected accidents.
Specification：
|

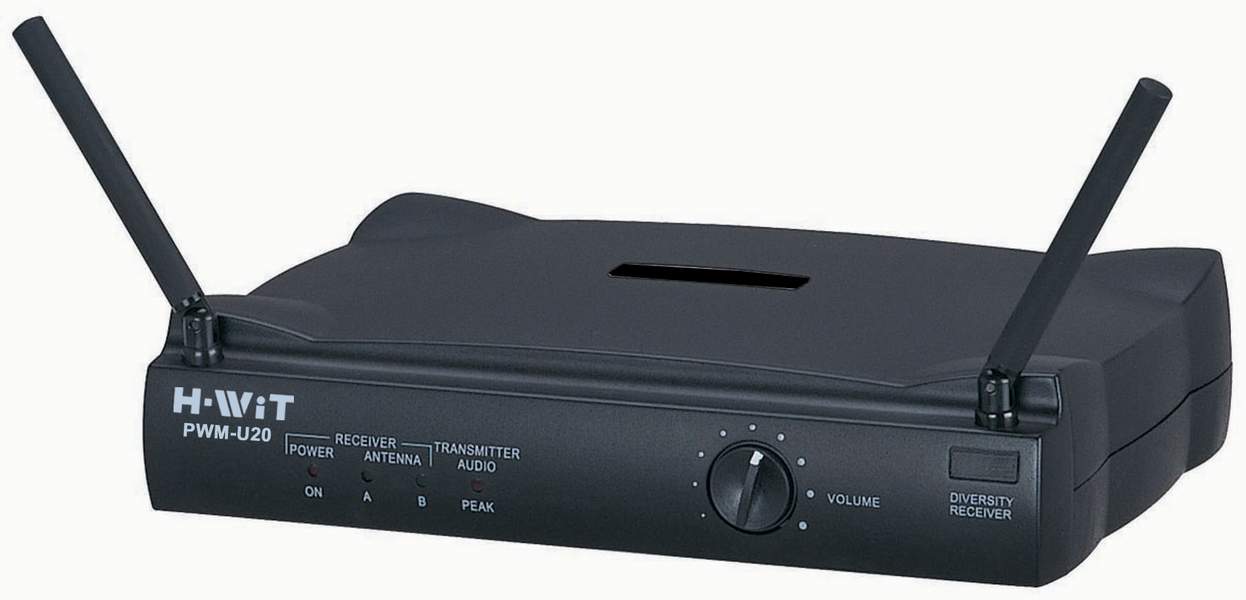

PWM- U20 Receiver
|
|
Frequency |
630 MHz – 865 MHz |
|
sensitivity |
-94dBm for30dB （medium frequency S/N） |
|
Mirror restrain |
> 60dB |
|
S/N |
> 90dB A WE |
|
Distortion |
< 1% for ±30KHz MOD，1KHz audio |
|
output |
XLR jack：-12dBV 1/4” jack：-18 dBV |
|
Audio frequency response |
60Hz-06KHz±3dB |
|
Dynamic |
> 90 dB |
|
Size |
44mm H.x 192mm L. x 138mm W. |
|
Weight |
440克 |
|
Power |
12 – 18V DC 30mA , with exterior power rectifier |
|
PWM- U20 Pocket transmiter |
|
Frequency |
630 MHz – 865 MHz |
|
Frequency stability |
50PPM （-10 ℃ -50℃） |
|
Transmit power |
10dBm |
|
Harmonic restaint |
> 55dBc |
|
moderation |
30KHz at Input level = 75 mV |
|
Sensitivity adjust range |
20 dB |
|
Max input |
6 dBV |
|
Size |
85mm (height)x 65mm (wide) x 24mm (thick) |
|
Weight |
85克（not include battery ） |
|
power |
2 “AA” batteries |
|
Durable time |
>6 hours （use battery ） |
|
PWM- U20 Handhold transmiter |
|
Frequency |
630 MHz – 865 MHz |
|
Frequency stability |
50PPM （-10 ℃ -50℃） |
|
Transmit power |
10dBm |
|
Harmonic restrain |
> 55dBc |
|
Mod level |
30KHz at Input level = 25 mV |
|
Sensitivity adjust range |
-- |
|
Max input level |
0 dBV |
|
Size |
250 mm L. x51mm dia。 |
|
weight |
307g（not include battery） |
|
power |
1 pc “9V” battery |
|
Time durable |
>6 hours （use battery） |
|
